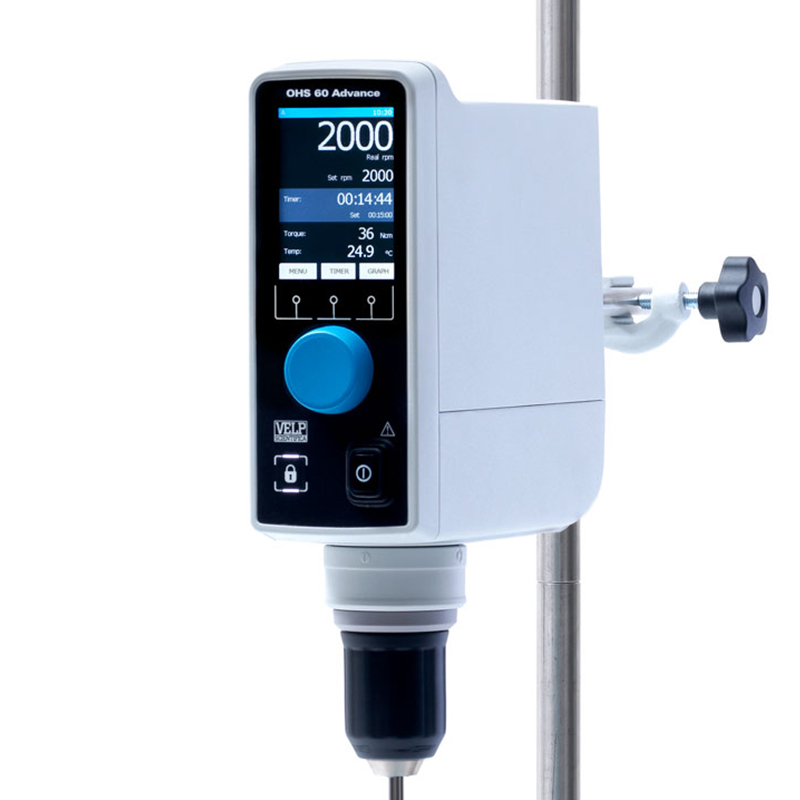

OHS 60 Advance Overhead Stirrer

OHS 60 Advance Overhead Stirrer

Overhead Stirrer with 60 Ncm torque,  3.5″ TFT display, timer,  Wi-Fi and USB connectivity able to stir up to 40  l.

Safety and resistance for your lab

OHS 60 Advance is the VELP high-end overhead stirrer designed to guarantee the highest safety standards.

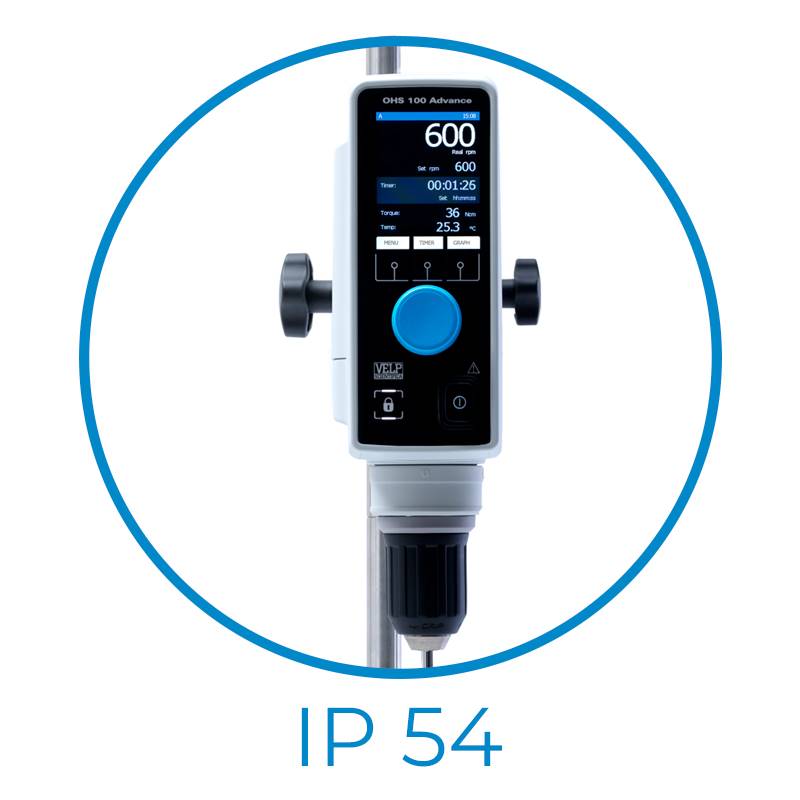

• The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
• Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time by stopping the stirring
• Safe start and stop knob operation and lock key avoid unintended start up and changes of the working conditions.
• Integrated vibration sensor with different levels of sensitivity will stop the operation and inform you to be sure that your OHS is stable and properly fixed.

OHS 60 Advance ensures continuous operation and is backed by 3 Years Warranty extension.

Best-in-class Stirring Power

The OHS 60 Advance is the ideal solution for demanding applications operating with viscosities up to 50.000 mPa.
The electronic controlled brushless motor of the OHS 60 Advance stirs up to 40 l (H2O) with a maximum torque of 60 Ncm, and ensures the longest lifespan.

SpeedServo^TM torque compensation technology keeps the speed constant automatically adjusting to viscosity changes. Set the OHS 60 Advance electronic speed control from 30 to 2000 rpm.

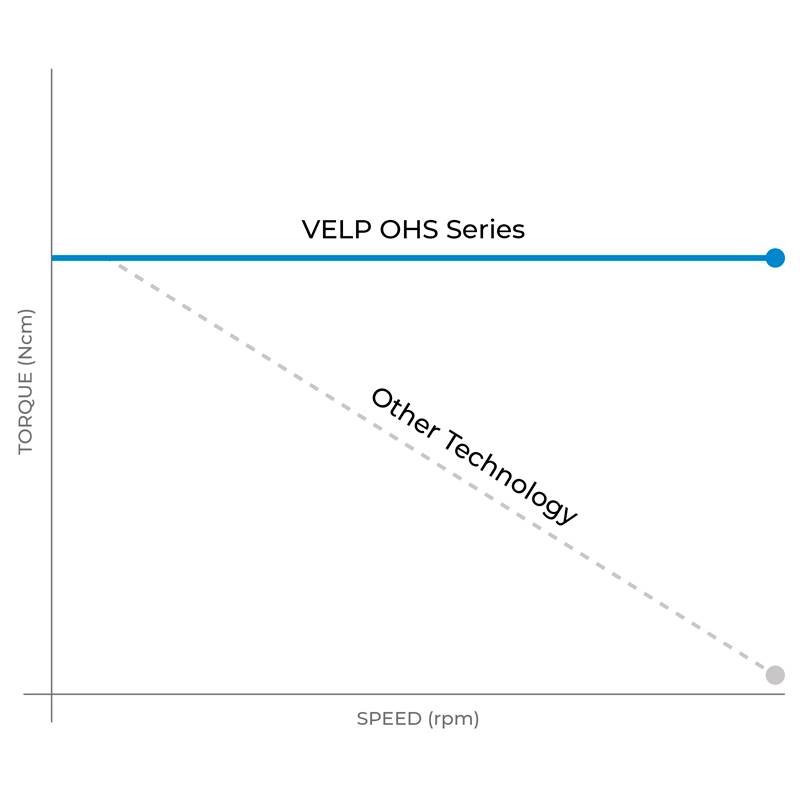

Constant torque at any speed

The brushless motor and the microprocessor guarantee excellent performance marking the difference between a conventional overhead and the VELP OHS Series.

The torque is stable throughout the whole speed range, ensuring stirring at maximum torque even at the highest speed.

This is a very important parameter for the reproducibility of your tests.

SmartChuck™ simplifies shaft accommodation

The OHS Advance SmartChuck™ technology simplifies the shaft accommodation process that can be carried out even with one hand and does not require any tool, making your life easier.

With two simple operations, you can unlock the protection ring to drive the shaft in and out with maximum ease.

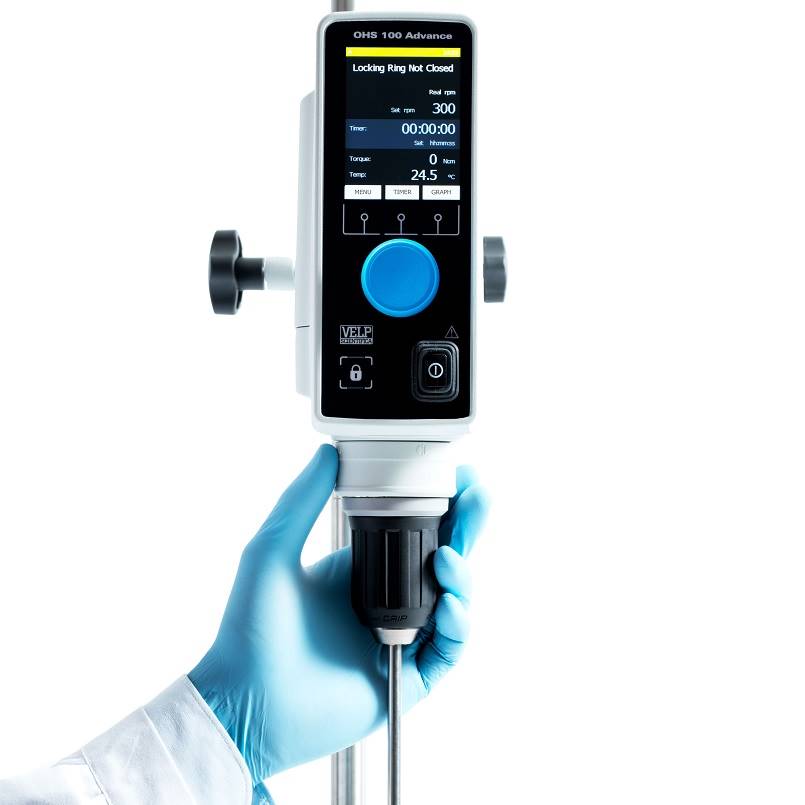

The opening of the ring during the stirring process will automatically block the analysis and the instrument informs you for maximum safety.

Intuitive and precise

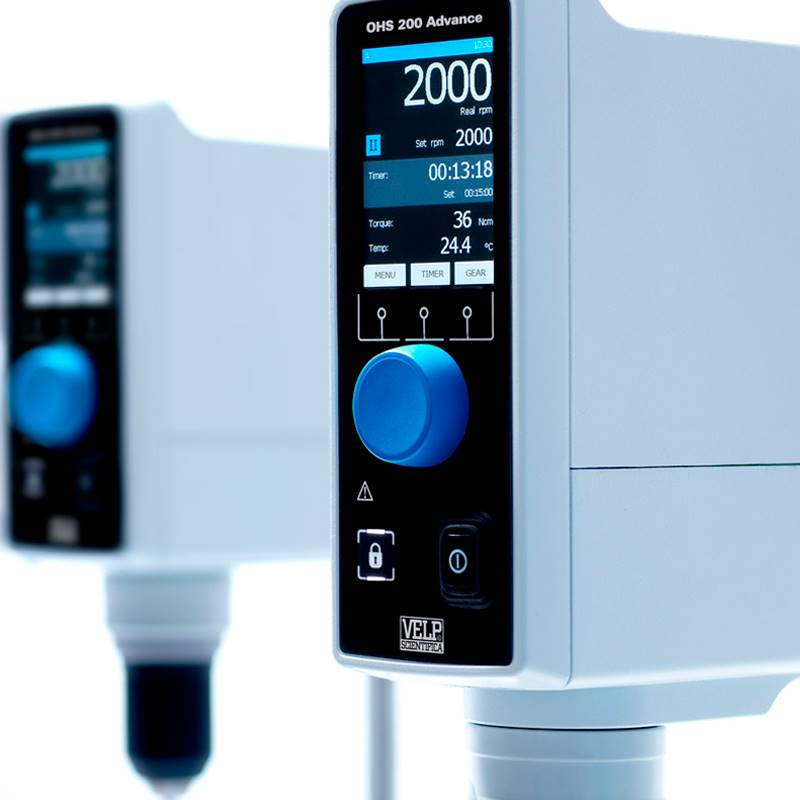

The OHS 60 Advance intuitive 3,5” TFT Display will guide you to precisely set your working conditions and get reproducible results. It shows the main information at a glance together with torque measurement on display for real-time information on viscosity change with a resolution of 1 Ncm.

Interact with the OHS Advance from the real-time graph showing speed, torque and temperature of your test.

The OHS 60 Advance works unattended thanks to the timer settable from 1min to 99.59h. Define and program your operating methods that are ideal for demanding tasks where ramps and interval operation are required.

Keep Temperature Under Control

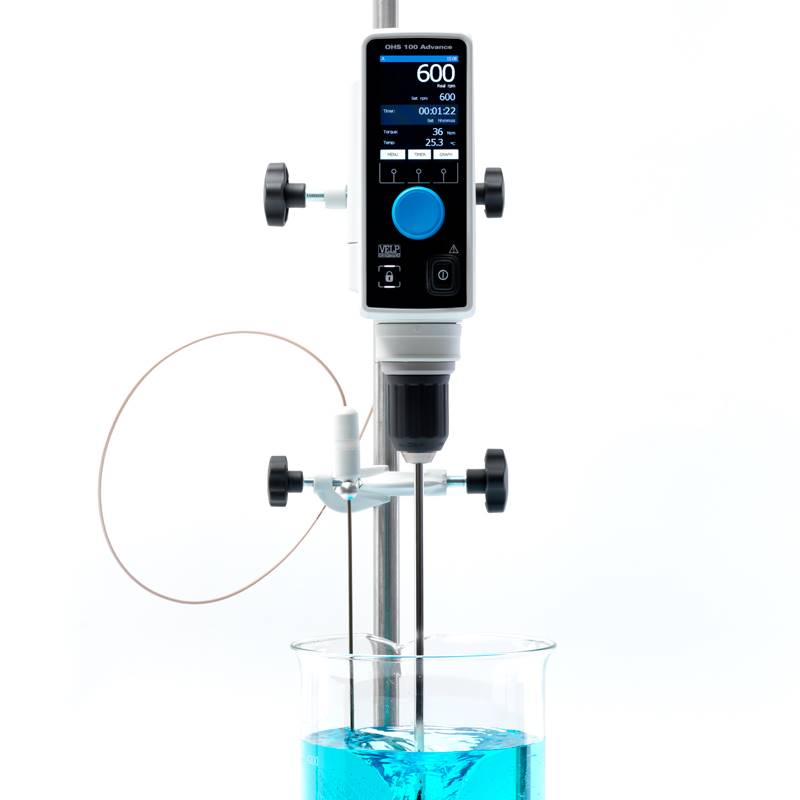

The OHS Advance comes with a Pt100 temperature probe included in your package.

Constantly monitor the temperature of your reaction and set the instrument to reduce speed or interrupt the task if the temperature reaches a defined value. This is important when you want to avoid that exothermic reactions will interfere with your analysis.

Smart Connectivity for Maximum Control

The OHS 60 Advance offers advanced connectivity options that make stirring operations smarter and more efficient.

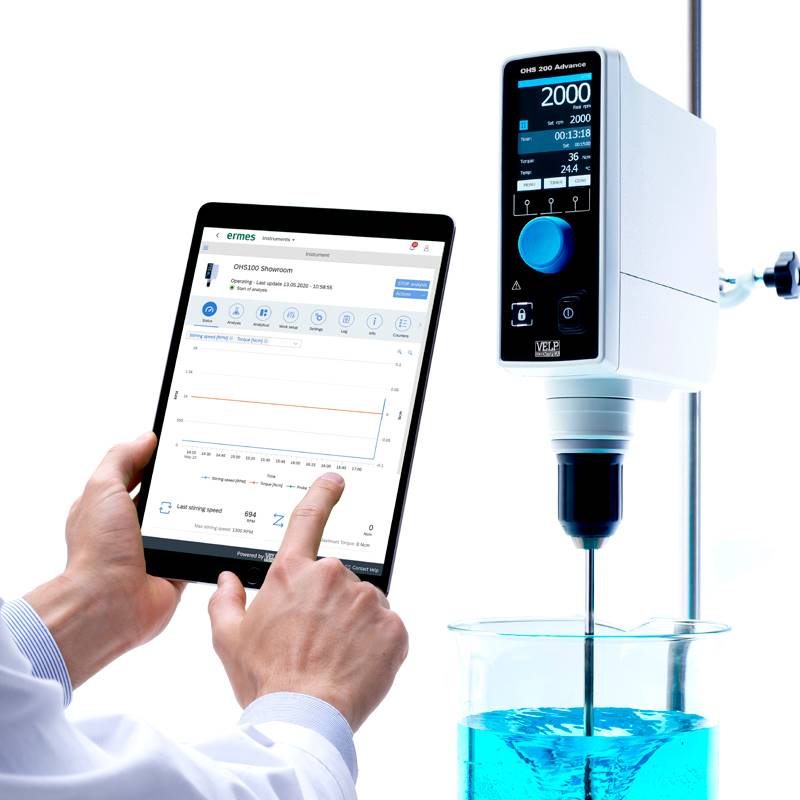

With the Velp Ermes cloud platform, you can monitor and control the overhead stirrer remotely from any device, at any time. Configure stirring parameters, set timers, launch saved methods, and download or share reports with just a click.

For laboratories that prefer local management, the ControllerSoft™ software provides a reliable alternative. Via USB connectivity, it enables real-time monitoring, data-logging, and easy visualization of stirring, temperature, and torque trends directly on a PC. Experimental data can be saved and exported for further analysis.
