Measuring stirrers STARVISC 200-2.5 control IKA
Technical Data
| Stirring quantity max. per stirring position (H2O) | 100 l |
| Motor rating input | 130 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/6 – 2000 rpm |
| Intermittent operation | yes |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 200 Ncm |
| Torque I max. | 200 Ncm |
| Torque II max. | 40 Ncm |
| Speed range I (50 Hz) | 6 – 400 rpm |
| Speed range II (50 Hz) | 30 – 2000 rpm |
| Speed range I (60 Hz) | 6 – 400 rpm |
| Speed range II (60 Hz) | 30 – 2000 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Plug-in coupling (Ø) | 10 mm |
| Chuck range diameter | 0.5 – 10 mm |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Nominal torque | 2 Nm |
| Torque measurement | yes |
| Deviation of torque measurement I | ±2.5 Ncm |
| Deviation of torque measurement II | ±2.5 Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 – 6000 min |
| Temperature measuring range | -10 – +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| Housing material | alu-cast coating / thermoplastic polymer |
| Communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 91 x 395 x 231 mm |
| Weight | 5.9 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |

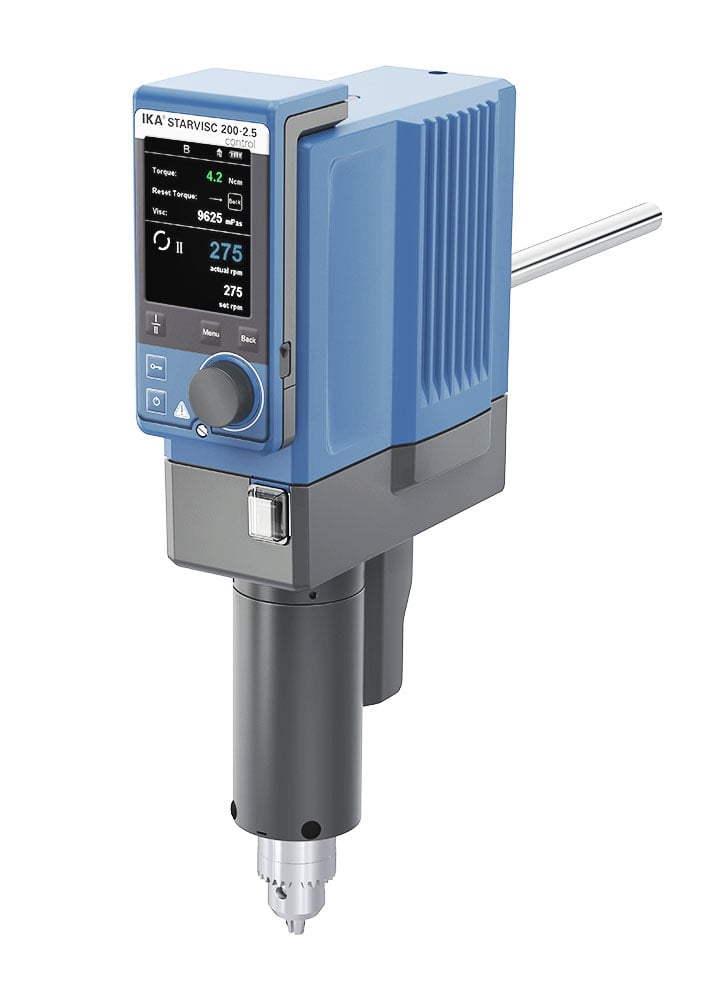

STARVISC 200-2.5 control
Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.
High-precision measurement
STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.
Viscosity calculation
A viscosity calculation can be carried out immediately via a userfriendly menu.
Removable control unit
The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.
Powerful stirrer
Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.
- STARVISC 200-2.5 control
- WICO STARVISC 200-2.5 C
- WH11
- Protective cover for WiCo contact
- WiCo power supply
- H 67.60 Temperature sensor, stainless steel
- USB Cable – USB A to Micro-B, 2 m
- USB cable micro A – micro B 2.0
- Offset screwdriver
- Screw driver
