CONTROLLER Advance
TECHNICAL DATA
| DISPLAY | 3,5″ Graphic TFT Display |
| USER INTERFACE | Digital |
| TORQUE COMPENSATION | SpeedServo™ |
| STIRRING DIRECTION | Clockwise/Counterclockwise |
| SPEED ACCURACY | 1 rpm step |
| SPEED CONTROL | Digital |
| FIXING SYSTEM | Shafts up to Ø 20mm, on both sides |
| SAFETY VIBRATION SENSOR | Yes |
| TIMER | Yes |
| METHODS | Yes |
| LOCK OF THE INSTRUMENT | Yes |
| EXTERNAL PROBE CONNECTION | Yes,Pt100 |
| TEMPERATURE MEASURING RANGE | -200 to 550 °C |
| TEMPERATURE RESOLUTION | 0.1 °C |
| CONNECTIVITY | USB / Wi-Fi |
| VELP ERMES CLOUD PLATFORM | Yes |
| OHS/CONTROLLER SOFT | Yes |
| DIMENSIONS (WxHxD) | 90x180x170 mm (3.54×7.10×6.70 in) |
| WEIGHT | 2,5 kg (5,51 lb) |

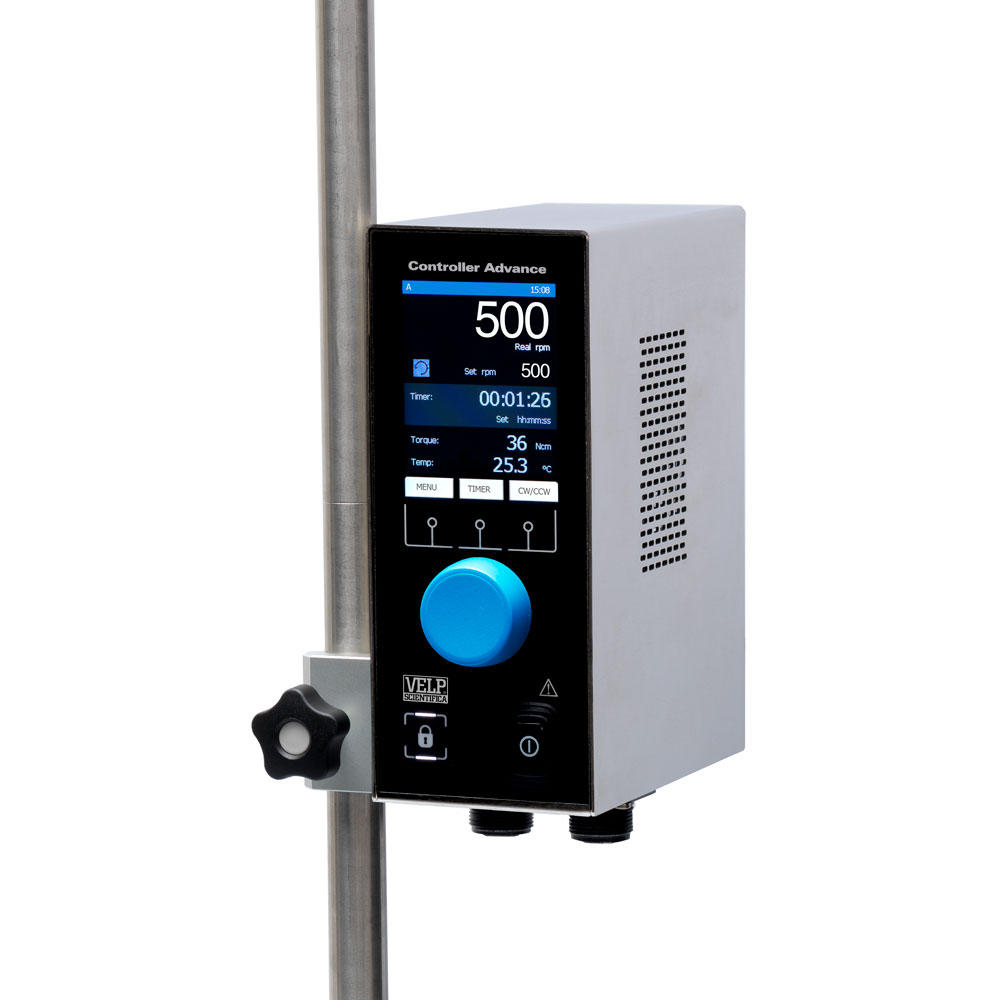

CONTROLLER Advance
The innovative solution to manage and monitor the shaft rotation speed of brushless motors in lab-scale reactor systems of up to 100 L provided with a 3.5″ TFT display, Data logging and Wi-Fi connectivity.
The innovative controller for chemical reaction system
Glass reaction systems are used in a wide variety of industrial fields to control chemical processes to transform the raw materials into the desired final products. Reactors may have a complex structure to face different operating conditions in terms of the nature of the chemicals involved (reagents and reaction products) and physical operating conditions.
The CONTROLLER Advance is designed to manage and monitor the shaft rotation speed of brushless motors in pilot-plant reactor systems of up to 100 L. The CONTROLLER Advance supports reactions for:
- Stirring: precisely set the desired speed (rpm) and the stirring direction
- Torque: precisely monitor the changes in the viscosity of the reaction mixture
- Temperature: temperature measurement of the reaction through PT100 connection

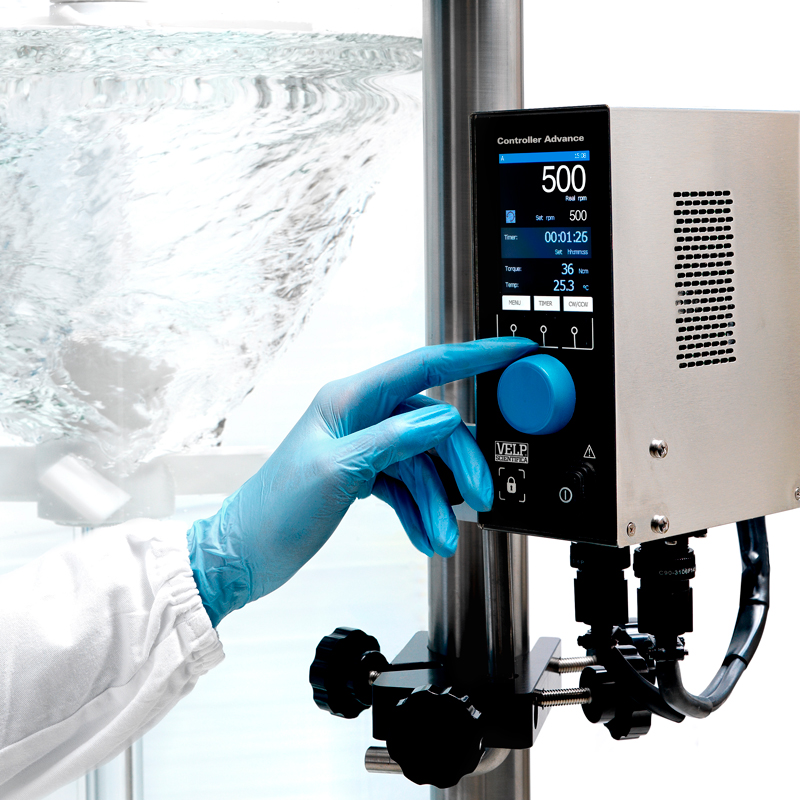

Easy-to-use and programmable

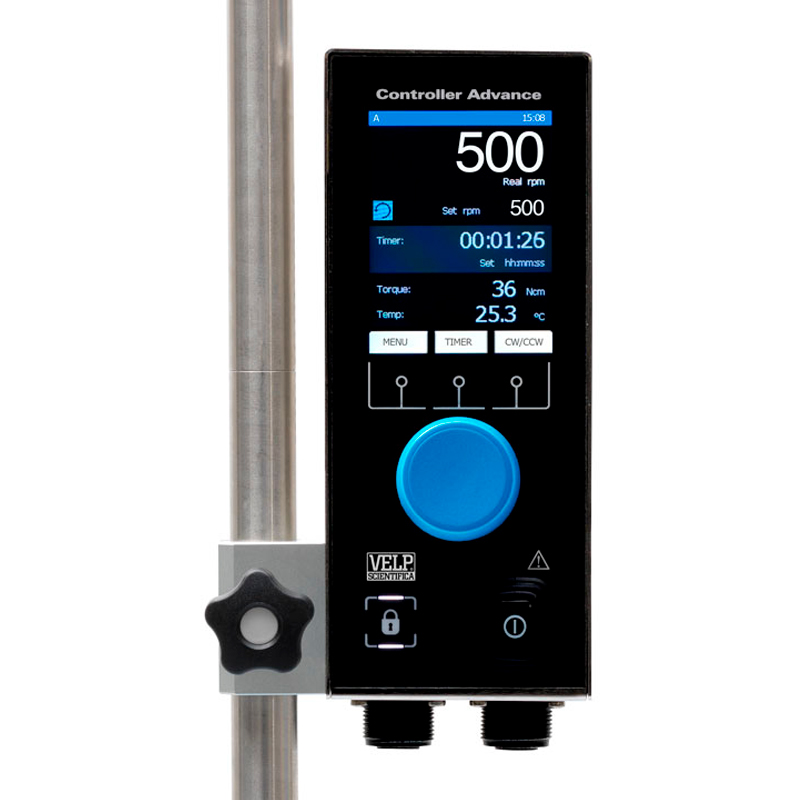

- The TFT 3.5” Display shows all setting information at a glance
- Reat time torque, speed and temperature graph monitoring
- Precise digital speed control: ± 1 rpm
- Intuitive knob to navigate the menu and start stop operations
- PT100 Probe connection for temperature monitoring (-200°C To +550°C)
- Programmable methods to set up to 4 time/speed ramps
- Timer for unattended operations
- Easy CW/CCW stirring direction changes
- Safety lock button to avoid unintentional changes with settings
Exclusive connectivity options for a total control of the reactions

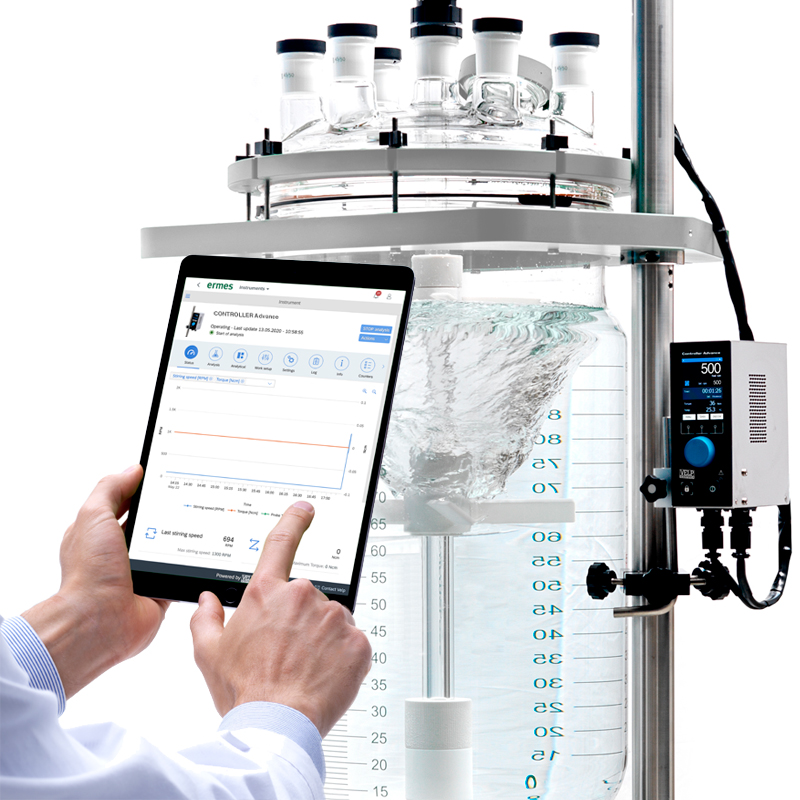

The CONTROLLER Advance Wi-Fi connectivity to VELP Ermes cloud platform provides exclusive advantages:
- Remote control and real-time monitoring of multiple instruments
- Access from Pc, tablet and smartphone
- Enhanced service support
- Datalog and reporting in multiple formats
- Software updates
To all laboratories that can’t benefit from cloud services, VELP offers a valid alternative with USB connectivity. The USB interface allows the controller to be connected to a PC via the OHS/CONTROLLERSoftTM software for constant data logging, monitoring and switching the controller on and off.
