Centrifuge Combo Solution IKA
Technical Data
| Capacity | 12 x 1.5/2.0 ml |
| Pemitted density | 1.2 kg/dm3 |
| RCF (relative centrifugal force) max. | 16500 G |
| Kinetic energy max. | 940 Nm |
| Motor rating input | 65 W |
| Speed range | 800 – 15700 rpm |
| Speed deviation | 2.5 % |
| Setting accuracy speed | ±100 rpm |
| Timer | yes |
| Timer display | 7 segment LED |
| Unbalance sensor | yes |
| Quick stop | yes |
| Cover opening | automatic |
| Rotor exchange | without tool |
| Protective cover | yes |
| Noise level | 55 dB(A) |
| Shortest start-up time to max. speed | 17 s |
| Shortest breaking time from max. speed | 18 s |
| Display changeable rpm <-> rcf | yes |
| Dimensions (W x H x D) | 200 x 140 x 280 mm |
| Weight | 3.9 kg |
| Permissible ambient temperature | +5 – +40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| USB interface | USB-B |
| Voltage | 220 – 230 V |
| Frequency | 50/60 Hz |
| Power input | 92 W |
| Power input standby | 3 W |
IKA Centrifuge Combo Solution

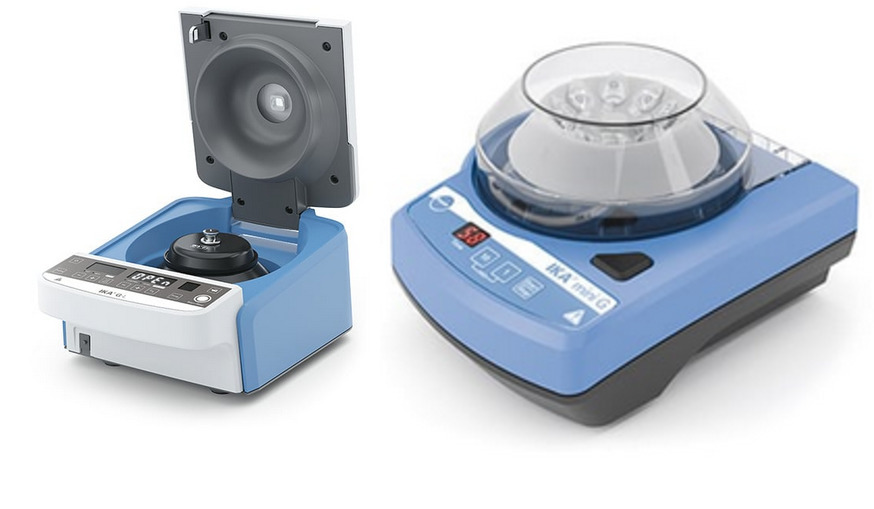

The IKA Centrifuge Combo Solution includes a mini and a midi centrifuge.
It will help you to cover all typical applications required low speed and high speed, like:
› E.coli testing in food and cosmetics
› Exogenous DNA residues testing in medicine / injections
› DNA separation for paternity testing and individual
identification
› DNA identification for soil and textiles
› RNA/Protein separation
› Micro-filtrations and cell separation
IKA G-L features:
Realize the ideal centrifuge with 115 years’ experience:
› Powerful motor: Perfect separation with 16,500 g max. RCF and 15,700 rpm max. speed
› Safe use: The safest one, with imbalance sensor to
avoid risk of damage by incorrect operation
› Broad scope of delivery: Compatible with 0.2 – 2 ml tubes, 12 positions
› User-friendly operation:
Easy operation with 9 pro¬grams, timer and interchangable RCF / RPM display
IKA mini G features:
› Fixed speed of 6,000 rpm
› Digital timer adjustable from 1 to 99 minutes
› Compact & quiet
› Complete set-up: 2 rotors for 8x 1.5/2ml tubes and 4x 8 PCR strips, adaptors for 0.2/0.4/0.5ml tubes are in the scope of delivery
Scope of delivery
- IKA G-L
- G-L 2 ml rotor set
- USB A-B Cable
- IKA mini G
- Rotor for 8 x 1.5/2 ml vessels
- Rotor for 4 x 8 x 0.2 ml PCR strips
- 8 adapters for 0.5 ml vessels
- Adapter set for 0.4 ml vessels (8 pcs.)
- Adapter set for 0.2 ml vessels (8 pcs.)
